功率表
功率表特性：精度：1.5級環境溫度范圍：-25℃- +55℃外殼防護：按IP42/52耐振動：0.7g儀表標度尺：白色底黑色刻度如需設定值可劃紅線?？梢远ㄗ髫摴β?10-20%刻度額定頻率：50Hz
產品描述
功率表特性：
精度：1.5級
環境溫度范圍：-25℃- +55℃
外殼防護：按IP42/52
耐振動：0.7g
儀表標度尺：白色底黑色刻度如需設定值可劃紅線。
可以定作負功率 10-20%刻度
額定頻率：50Hz;60Hz
儀表安裝：用四個對角支架固定
功率表產品分類：

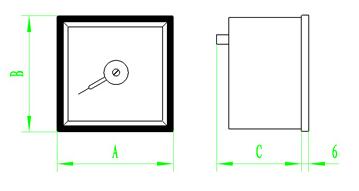

| 產品型號 | 展開角 | 外型尺寸(A×B×C) | 開孔尺寸 | 重量 | 測量范圍 | 備注 | |
| Q144-WTCZA | 240° | 144×144×80 | 138+0.5×138+0.5 | 1.25 | 表13-2 | 三相有功功率表 | |
| Q96-WTCZA | 96×96×140 | 92+0.5×92+0.5 | 1.2 | ||||
| Q72-WTCZA | 72×72×80 | 68+0.5×68+0.5 | 1.4 | 配變換器 | |||
| Q144-WTCA | 90° | 144×144×80 | 138+0.5×138+0.5 | 1.15 | |||
| Q96-WTCA | 96×96×140 | 92+0.5×92+0.5 | 1.1 | ||||
| Q72-WTCA | 72×72×80 | 68+0.5×68+0.5 | 1.4 | 配變換器 | |||
| Q144-YTCZA | 240° | 144×144×80 | 138+0.5×138+0.5 | 1.25 | 表13-3 | 三相無功功率表 | |
| Q96-YTCZA | 96×96×140 | 92+0.5×92+0.5 | 1.2 | ||||
| Q72-YTCZA | 72×72×80 | 68+0.5×68+0.5 | 1.4 | 配變換器 | |||
| Q144-YTCA | 90° | 144×144×80 | 138+0.5×138+0.5 | 1.15 | |||
| Q96-YTCA | 96×96×140 | 92+0.5×92+0.5 | 1.1 | ||||
| Q72-YTCA | 72×72×80 | 68+0.5×68+0.5 | 1.4 | 配變換器 | |||
| Q144-WMCZ | 240° | 144×144×80 | 138+0.5×138+0.5 | 1.25 | 表13-4 | 單相功率表 | |
| Q96-WMCZ | 96×96×140 | 92+0.5×92+0.5 | 1.2 | ||||
| Q72-WMCZ | 72×72×80 | 68+0.5×68+0.5 | 1.4 | 配變換器 | |||
| Q144-WMC | 90° | 144×144×80 | 138+0.5×138+0.5 | 1.15 | |||
| Q96-WMC | 96×96×140 | 92+0.5×92+0.5 | 1.1 | ||||
| Q72-WMC | 72×72×80 | 92+0.5×92+0.5 | 1.4 | 配變換器 | |||
| Q96-WTCA-S | 90° | 96×96×140 | 92+0.5×92+0.5 | 1.2 | 100V220V 1A，5A | 三相四線制 | |
| Q96-WTCZA-S | 240° | 96×96×140 | 92+0.5×92+0.5 | 1.2 | |||
| Q96-WTCA-NA | 90° | 96×96×140 | 92+0.5×92+0.5 | 1.2 | 表13-2 | 逆功率帶報警 | |
| Q96-WTCZA-NA | 240° | 96×96×140 | 92+0.5×92+0.5 | 1.2 | |||
三相功率表測量范圍
| 額定電流（經次級電流為5A之電流互感器接入）A | 測量范圍 | 額定電壓V | |||||||||||
| 直接接入 | 經電壓互感器接入（次級電壓為100V） | ||||||||||||
| 100 | 220 | 380 | 380 | 3K | 6K | 10K | 15K | 35K | 110K | 220K | 380K | ||
| 5 | KW | 0.8 | 2 | 3 | 3 | 25 | 50 | 80 | 120 | 300 | 1 | 2 | 3 |
| 7.5 | 1.2 | 3 | 5 | 5 | 40 | 80 | 120 | 200 | 500 | 1.5 | 3 | 5 | |
| 10 | 1.5 | 4 | 6 | 6 | 50 | 100 | 150 | 250 | 600 | 2 | 4 | 6 | |
| 15 | 2.5 | 6 | 10 | 10 | 80 | 150 | 250 | 400 | 1 | 3 | 6 | 10 | |
| 20 | 3 | 8 | 12 | 12 | 100 | 200 | 300 | 500 | 1.2 | 4 | 8 | 12 | |
| 30 | 5 | 12 | 20 | 20 | 150 | 300 | 500 | 800 | 2 | 6 | 12 | 20 | |
| 40 | 6 | 15 | 25 | 25 | 200 | 400 | 600 | 1 | 2.5 | 8 | 15 | 25 | |
| 50 | 8 | 20 | 30 | 30 | 250 | 500 | 800 | 1.2 | 3 | 10 | 20 | 30 | |
| 75 | 12 | 30 | 50 | 50 | 400 | 800 | 1.2 | 2 | 5 | 15 | 30 | 50 | |
| 100 | 15 | 40 | 60 | 60 | 500 | 1 | 1.5 | 2.5 | 6 | 20 | 40 | 60 | |
| 150 | 25 | 60 | 100 | 100 | 800 | 1.5 | 2.5 | 4 | 10 | 30 | 60 | 100 | |
| 200 | 30 | 80 | 120 | 120 | 1 | 2 | 3 | 5 | 12 | 40 | 80 | 120 | |
| 300 | 50 | 120 | 200 | 200 | 1.5 | 3 | 5 | 8 | 20 | 60 | 120 | 200 | |
| 400 | 60 | 150 | 250 | 250 | 2 | 4 | 6 | 10 | 25 | 80 | 150 | 250 | |
| 600 | 100 | 250 | 400 | 400 | 3 | 6 | 10 | 15 | 40 | 120 | 250 | 400 | |
| 750 | 120 | 300 | 500 | 500 | 4 | 8 | 12 | 20 | 50 | 150 | 300 | 500 | |
| 800 | 120 | 300 | 500 | 500 | 4 | 8 | 12 | 20 | 50 | 150 | 300 | 500 | |
| 1K | 150 | 400 | 600 | 600 | 5 | 10 | 15 | 25 | 60 | 200 | 400 | 600 | |
| 1.5K | 250 | 600 | 1 | 1 | 8 | 15 | 25 | 40 | 100 | 300 | 600 | 1000 | |
| 2K | 300 | 800 | 1.2 | 1.2 | 10 | 20 | 30 | 50 | 120 | 400 | 800 | 1200 | |
| 3K | 500 | 1.2 | 2 | 2 | 15 | 30 | 50 | 80 | 200 | 600 | 1200 | 2000 | |
| 4K | 600 | 1.5 | 2.5 | 2.5 | 20 | 40 | 60 | 100 | 250 | 800 | 1500 | 2500 | |
| 5K | 800 | 2 | 3 | 3 | 25 | 50 | 80 | 120 | 300 | 1000 | 2000 | 3000 | |
| 6K | MW | 1 | 2.5 | 4 | 4 | 30 | 60 | 100 | 150 | 400 | 1200 | 2500 | 4000 |
| 7.5K | 1.2 | 3 | 5 | 5 | 40 | 80 | 120 | 200 | 500 | 1500 | 3000 | 5000 | |
| 10K | 1.5 | 4 | 6 | 6 | 50 | 100 | 150 | 250 | 600 | 2000 | 3500 | 6000 | |
三相無功功率表測量范圍
| 額定電流（經次級電流為5A之電流互感器接入）A | 測量范圍 | 額定電壓V | |||||||||||
| 直接接入 | 經電壓互感器接入（次級電壓為100V） | ||||||||||||
| 100 | 220 | 380 | 380 | 3K | 6K | 10K | 15K | 35K | 110K | 220K | 380K | ||
| 5 | Kvar | 0.6 | 1.5 | 2.5 | 2.5 | 20 | 40 | 60 | 100 | 250 | 800 | 1.5 | 2.5 |
| 7.5 | 1 | 2.5 | 4 | 4 | 30 | 60 | 100 | 150 | 400 | 1.2 | 2.5 | 4 | |
| 10 | 2 | 3 | 5 | 5 | 40 | 80 | 120 | 200 | 500 | 1.5 | 3 | 5 | |
| 15 | 2.5 | 4 | 8 | 8 | 50 | 120 | 200 | 300 | 800 | 2.5 | 5 | 8 | |
| 20 | 4 | 6 | 10 | 10 | 80 | 150 | 250 | 400 | 1 | 3 | 6 | 10 | |
| 30 | 5 | 10 | 15 | 15 | 120 | 250 | 400 | 600 | 1.5 | 5 | 10 | 15 | |
| 40 | 6 | 12 | 20 | 20 | 150 | 300 | 500 | 800 | 2 | 6 | 12 | 20 | |
| 50 | 10 | 15 | 25 | 25 | 200 | 400 | 600 | 1 | 2.5 | 8 | 15 | 25 | |
| 75 | 12 | 25 | 40 | 40 | 300 | 600 | 1 | 1.5 | 4 | 12 | 25 | 40 | |
| 100 | 20 | 30 | 50 | 50 | 400 | 800 | 1.2 | 2 | 5 | 15 | 30 | 50 | |
| 150 | 25 | 50 | 80 | 80 | 600 | 1.2 | 2 | 3 | 8 | 25 | 50 | 80 | |
| 200 | 30 | 60 | 100 | 100 | 800 | 1.5 | 2.5 | 4 | 10 | 30 | 60 | 100 | |
| 300 | 40 | 100 | 150 | 150 | 1.2 | 2.5 | 4 | 6 | 15 | 50 | 100 | 150 | |
| 400 | 50 | 120 | 200 | 200 | 1.5 | 3 | 5 | 8 | 20 | 60 | 120 | 200 | |
| 600 | 60 | 200 | 300 | 300 | 2.5 | 5 | 8 | 12 | 30 | 100 | 200 | 300 | |
| 750 | 100 | 250 | 400 | 400 | 3 | 6 | 10 | 15 | 40 | 120 | 250 | 400 | |
| 800 | 100 | 250 | 400 | 400 | 3 | 6 | 10 | 15 | 40 | 120 | 250 | 400 | |
| 1K | 120 | 300 | 500 | 500 | 4 | 8 | 12 | 20 | 50 | 150 | 300 | 500 | |
| 1.5K | 200 | 500 | 800 | 800 | 6 | 12 | 20 | 30 | 80 | 250 | 500 | 800 | |
| 2K | 250 | 600 | 1 | 1 | 8 | 15 | 25 | 40 | 100 | 300 | 600 | 1000 | |
| 3K | 400 | 1 | 1.5 | 1.5 | 12 | 25 | 40 | 60 | 150 | 500 | 1000 | 1500 | |
| 4K | 500 | 1.2 | 2 | 2 | 15 | 30 | 50 | 80 | 200 | 600 | 1200 | 2000 | |
| 5K | 600 | 1.5 | 2.5 | 2.5 | 20 | 40 | 60 | 100 | 250 | 800 | 1500 | 2500 | |
| 6K | Mvar | 800 | 2 | 3 | 3 | 25 | 50 | 80 | 120 | 300 | 1000 | 2000 | 3000 |
| 7.5K | 1 | 2.5 | 4 | 4 | 30 | 60 | 100 | 150 | 400 | 1200 | 2500 | 4000 | |
| 10K | 1.2 | 3 | 5 | 5 | 40 | 80 | 120 | 200 | 500 | 1500 | 3000 | 5000 | |
單相功率表測量范圍
| 儀表串聯線路接通方式 | 額定電流（A） | 測量上限 | 儀表并聯線路的接通方式 | ||||||||||||
| 額定電壓V | |||||||||||||||
| 直接接通 | 經電壓互感器接入（次級電壓為100V） | ||||||||||||||
| 100 | 220 | 380 | 380 | 500 | 3K | 6K | 10K | 15K | 35K | 110K | 220K | 380K | |||
| 經電流互感器接通（次級電流為5A） | 5 | KW | |||||||||||||
| 7.5 | |||||||||||||||
| 10 | 0..75 | 1.5 | 2.5 | 2.5 | 3 | 20 | 40 | 75 | 100 | 250 | 800 | 1.5 | 2.5 | ||
| 15 | 1 | 2 | 3 | 3 | 5 | 30 | 60 | 100 | 150 | 300 | 1 | 2 | 3 | ||
| 20 | 1.5 | 3 | 5 | 5 | 7.5 | 40 | 80 | 150 | 200 | 500 | 1.5 | 3 | 5 | ||
| 30 | 2 | 4 | 7.5 | 7.5 | 10 | 60 | 120 | 200 | 300 | 600 | 2 | 4 | 7.5 | ||
| 40 | 3 | 6 | 10 | 10 | 15 | 80 | 180 | 300 | 400 | 1 | 3 | 6 | 10 | ||
| 50 | 4 | 7.5 | 12 | 12 | 20 | 120 | 200 | 400 | 600 | 1.2 | 4 | 8 | 12 | ||
| 75 | 5 | 10 | 15 | 15 | 25 | 150 | 300 | 500 | 750 | 1.5 | 5 | 10 | 15 | ||
| 100 | 7.5 | 15 | 25 | 25 | 30 | 200 | 400 | 750 | 1 | 2.5 | 8 | 15 | 25 | ||
| 150 | 10 | 20 | 30 | 30 | 50 | 300 | 600 | 1 | 1.5 | 3 | 10 | 20 | 30 | ||
| 200 | 15 | 30 | 50 | 50 | 75 | 400 | 800 | 1.5 | 2 | 5 | 15 | 30 | 50 | ||
| 300 | 20 | 40 | 75 | 75 | 100 | 600 | 1.2 | 2 | 3 | 6 | 20 | 40 | 75 | ||
| 400 | 30 | 60 | 100 | 100 | 150 | 800 | 1.5 | 3 | 4 | 10 | 30 | 60 | 100 | ||
| 600 | 40 | 80 | 150 | 150 | 200 | 1.2 | 2 | 4 | 6 | 12 | 40 | 80 | 150 | ||
| 750 | 60 | 120 | 200 | 200 | 300 | 1.5 | 3 | 6 | 8 | 20 | 60 | 120 | 200 | ||
| 800 | 75 | 150 | 250 | 250 | 300 | 2 | 4 | 7.5 | 10 | 25 | 80 | 150 | 250 | ||
| 1K | 100 | 200 | 300 | 300 | 500 | 3 | 6 | 10 | 15 | 30 | 100 | 200 | 300 | ||
| 1.5K | 150 | 300 | 500 | 500 | 750 | 4 | 8 | 15 | 20 | 50 | 150 | 300 | 500 | ||
| 2K | 200 | 400 | 750 | 750 | 1 | 6 | 12 | 20 | 30 | 60 | 200 | 400 | 750 | ||
| 3K | 300 | 600 | 1 | 1 | 1.5 | 8 | 15 | 30 | 40 | 100 | 300 | 600 | 1000 | ||
| 4K | 400 | 800 | 1.2 | 1.2 | 2 | 12 | 20 | 40 | 60 | 120 | 400 | 800 | 1200 | ||
| 5K | 500 | 1 | 1.5 | 1.5 | 2.5 | 15 | 30 | 50 | 75 | 150 | 500 | 1000 | 1500 | ||
| 6K | 600 | 1.2 | 2 | 2 | 3 | 15 | 30 | 60 | 80 | 200 | 600 | 1200 | 2000 | ||
| 7.5K | 750 | 1.5 | 2.5 | 2.5 | 3 | 20 | 40 | 75 | 100 | 250 | 800 | 1500 | 2500 | ||
| 10K | MW | 1 | 2 | 3 | 3 | 5 | 30 | 60 | 100 | 150 | 300 | 1000 | 2000 | 3000 | |

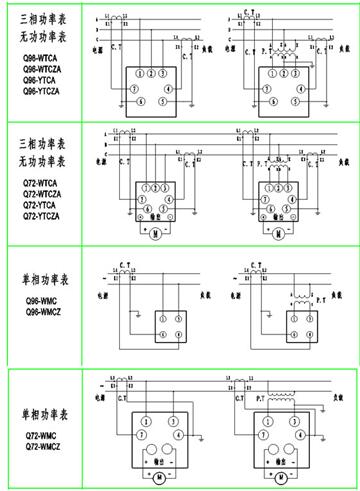

接線圖
